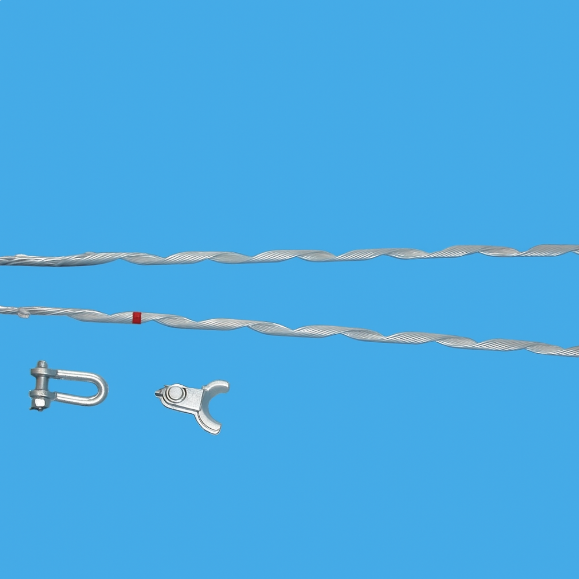

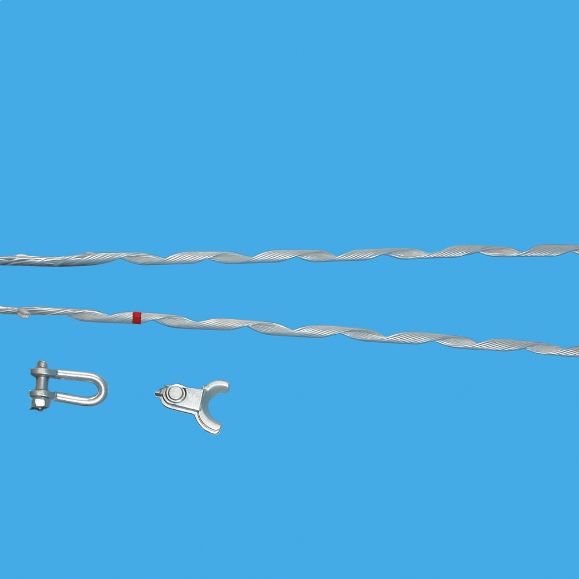

Name: Preformed Dead End - Secure and Reliable Cable Termination Solution
Brand: Chengdu Helical Line Products Co., Ltd.
SKU: DN1102
Price: 2.40 USD
Availability: InStock

Preformed Dead End - Secure and Reliable Cable Termination Solution

Informação Básica

Lugar de origem:	ChengDu China
Marca:	HLLP
Número do modelo:	DN1102

Quantidade de ordem mínima:	100 conjuntos
Preço:	US$ 0.4-5 per set
Detalhes da embalagem:	Paletes de papelão, caixas de madeira ou conforme necessário
Tempo de entrega:	10-20 dias
Termos de pagamento:	T/T.
Habilidade da fonte:	100000 conjuntos por mês

contacto

Tipo de produto:

Kit sem saída pré -formado

desempenho duradouro:

Vida de serviço de mais de 50 anos

Aplicação:

Para os condutores ACSR, AAC, AAAC e OPGW

Instalação:

I-Instalação sem ferramentas

Principais vantagens:

Resistência ao amortecimento e fadiga da vibração superior

Qualidade garantida:

Atinge 100% RBS (força de quebra nominal)

Aplicação universal:

Se encaixa no ACSR, AAAC, ADSS

Preformed Dead End - Secure and Reliable Cable Termination Solution

Our Preformed Dead End is engineered for superior performance and durability in overhead power distribution and telecommunication applications. Designed to provide a secure, permanent termination point for cables, this solution ensures maximum reliability under various environmental conditions

Key Features:

High Tensile Strength: Constructed from premium materials to withstand extreme mechanical loads.
Corrosion Resistance: Galvanized or aluminum alloy options offer long-lasting protection against harsh weather and corrosive environments.
Easy Installation: Preformed design allows for quick, tool-free installation, reducing labor time and costs.
Versatile Compatibility: Suitable for ACSR, AAC, AAAC, and other common cable types.
Enhanced Safety: Eliminates the need for splices or clamps, minimizing potential failure points.

Parameter / Specification	Model PD-ACSR1	Model PD-ACSR2	Model PD-AAAC1	Model PD-ADSS1	Notes
Applicable Cable Type	ACSR	ACSR	AAC/AAAC	ADSS & OPGW	-
Cable Diameter Range (mm)	10.0 - 14.0	14.1 - 18.0	8.0 - 12.0	10.0 - 16.0	Custom sizes available
Ultimate Breaking Load (kN)	≥ 30	≥ 50	≥ 20	≥ 25	Meets IEC 61284 standards
Weight (kg per unit)	0.45	0.75	0.35	0.50	± 0.05 kg
Material	Galvanized Steel Wire	Galvanized Steel Wire	Aluminum Alloy	Aluminum Alloy	Highly corrosion-resistant
Galvanization Type	Class A / Special	Class A / Special	-	-	Upon request
Operating Temperature	-40°C to +80°C	-40°C to +80°C	-40°C to +80°C	-40°C to +80°C
Standard Compliance	IEC 61284, ASTM	IEC 61284, ASTM	IEC 61284, ASTM	IEC 61284, ASTM	Customizable to other standards

Applications:

Overhead power transmission and distribution lines.
Telecommunication and fiber optic cable support.
Railway electrification systems.
Renewable energy projects (e.g., wind and solar farms).

Trust our Preformed Dead End for a maintenance-free, secure cable termination that meets international standards. Boost your project’s efficiency and safety with our proven solution!

Our customization options include:

Material Specification: Choose from various materials like galvanized steel, aluminum alloy, or special coatings for enhanced corrosion resistance.
Precise Sizing: Get exact sizes tailored to your cable's diameter and tensile strength needs.
Special Packaging: Request specific packaging (e.g., master cartons, palletization) for easier logistics and on-site handling.
Branding & Marking: Add your company logo, product IDs, or QR codes for traceability and brand consistency.

Tell us your needs, and we'll engineer the solution.
